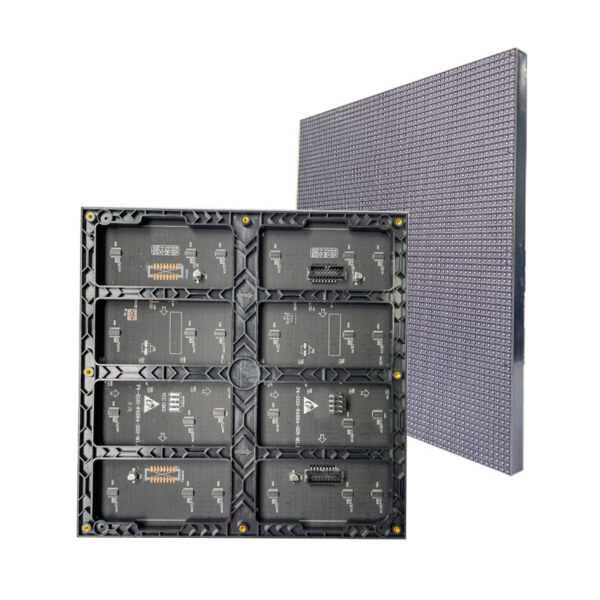

Indoor LED Display Screen Module-P4 256X256mm
Led display can be any size, any direction, a variety of specifications for installation, maintenance, convenient management.
Before/after maintenance seamless HD.
DESCRIPTION
SPECIFICATION
Video
RELATED PRODUCTS
DESCRIPTION
SPECIFICATION
Video
RELATED PRODUCTS
256X256mm P4mm indoor led display module Best Color Uniformity High Refresh Rate 64X64dots Pixel SMD LED screen Panel.
Remark:
1. Using high quality SMD led lamp bead, no damge lamp, uniform current, same brightness, higher gray level.
2. LED Module Can Work With Linsn,Novastar,Colorlight LED Conrol Card Etc.
Indoor LED Display Screen Module-P4 256X256mm
Ask for a quote
Specification
| Model Number | P4 |
| Dimension(MM) | 256X256 |
| Pixel Pitch(MM) | 4 |
| LED Standard | SMD2121 |
| Scan Mode | 1/32 |
| Module Resolution(Dots) | 64X64 |
| Pixel Density(Dot/m²) | 62500Dots/m² |
| Power Consumption(Ave/m²) | 400w/m² |
| Power Consumption (Max/m2) | 800w/m² |
| Best Viewing Distance(M) | 4-50M |
| Brightness(CD/m²) | 500~1000CD/m² |
| Viewing Angle | 160 |
| Protection Lever | IP31 |
| Grey Level | 16bit |
| Working Temperature | -20~50℃ |
| Working Humidity | 10%~90%RH |
| Life Span | ≤100000Hours |
| Working Voltage | DC 5V |
